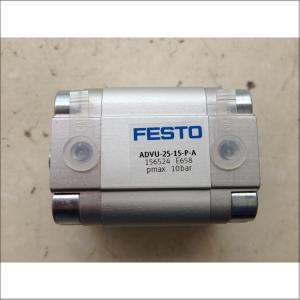

Product Overview
Technical Specifications
-
Piston Diameter: 25 mm
-
Stroke: 15 mm
-
Operating Mode: Double-acting
-
Piston Rod End: Female thread
-
Cushioning: Elastic cushioning rings/plates at both ends
-
Mounting Position: Optional (any position)
-
Operating Pressure Range: 0.1 MPa to 1 MPa (1 bar to 10 bar)
-
Operating Temperature Range: -20°C to 80°C
-
Theoretical Force at 6 bar:
-
Advancing: 295 N
-
Retracting: 247 N
-
Weight: 180 g (with 0 mm stroke) + 28 g per 10 mm stroke
-
Pneumatic Connection: M5
-
Materials:
Features
-
Compact Design: Suitable for applications with limited space.
-
Integrated Magnet: Ready for position sensing with proximity switches.
-
Versatile Mounting: Can be installed in any position.
-
Smooth Operation: Elastic cushioning rings/plates at both ends provide smooth and quiet operation.
Applications
This compact cylinder is ideal for a wide range of industrial automation applications, including assembly lines, material handling, and robotic systems, where precise linear motion and compact size are required.
